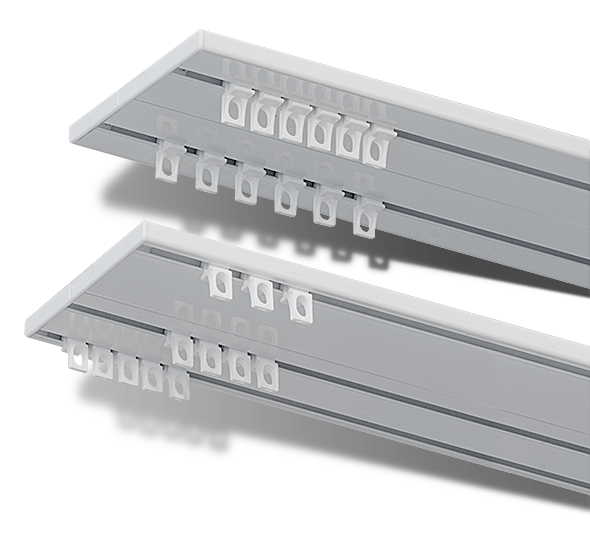

MCS® 2/3 多通道軌道系統
|
||
 |
||
|
三通道或兩通道窗簾軌道，可同時安裝窗紗、分片安裝遮光簾確保更多遮光重疊及安裝裝飾簾頭。 |
MCS 2/3通道軌是豐拓集團的新品，也稱為多通道軌。
如您正在尋找一個優雅的窗軌系統可以懸掛多個窗簾，這是一個非常理想的選擇。
完美的光潔度
通過巧妙的設計，這種軌道可以用來懸掛兩個或三個窗簾。
每米軌道每個通道的最大織物重量為15千克（每米軌道總重量為45千克）
酒店、辦公室、住宅、船只、露營車、飛機或任何需要多通道通道通道的窗簾和窗簾。
鋁合金擠壓件，白色鉻粉涂層，干式潤滑。長度為6米。軌道每50cm有一個預留的固定螺絲孔且提供固定孔的塑料封蓋。軌道重量為0.77 kg/mt
|

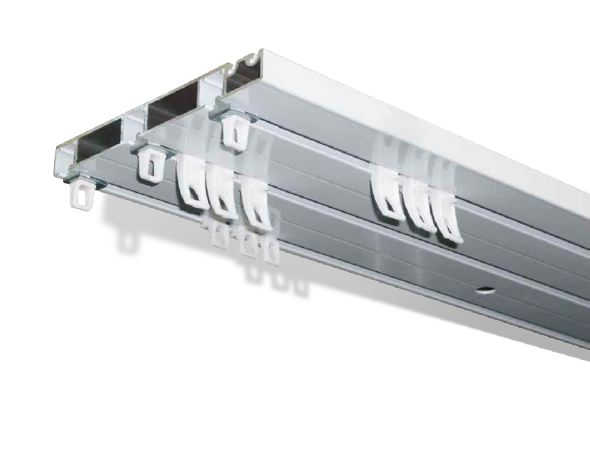

MCS® MULTI CHANNEL SYSTEM
|
||
|
||
|
... |
3 glide Multi channel track system
Easy installation thanks to pre-drilled holes
Sufficient spacing between the channels to allow for different pleating options
KS components can be used
Optional cover cap available, for creating an easy pelmet cover
Maximum fabric weight 10 kg per channel per running meter of track (30 kg in total per running meter of track)
Hotels – offices – residences – boats – campers – planes or anywhere an efficient Multi channel track is required for curtains and drapes.
Aluminium extrusion, white powdercoated, lubricated. available in 4 and 5 meter length. Holes for fixing the track are pre-drilled every 50cm. Plastic cover caps for the fixing holes are available. The weight of the track is 1.14 kg/mtr.
|

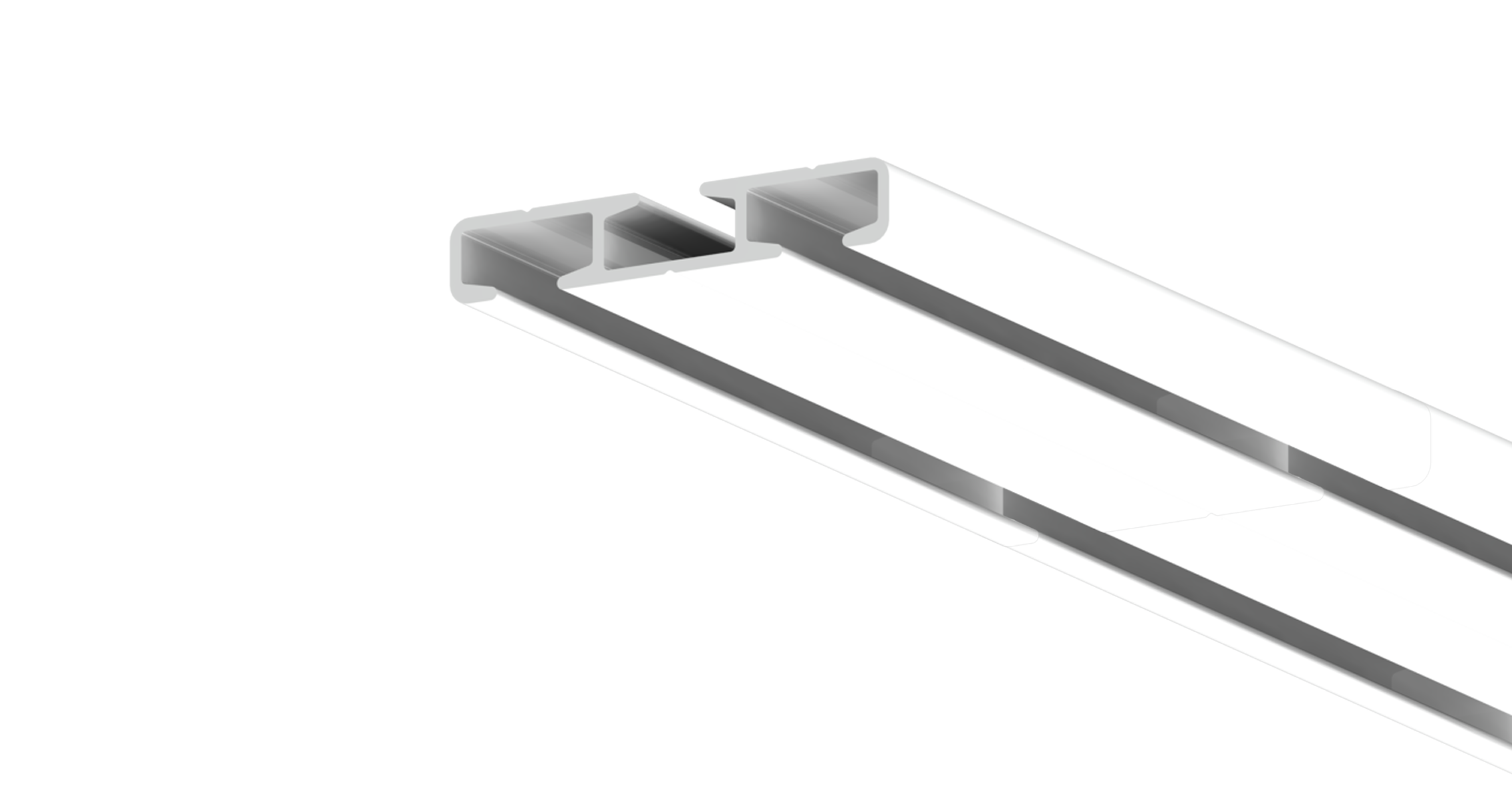

MCS® 2/1 MULTI CHANNEL SYSTEM
|
||
|
||
|
... |
MCS 2/1 is new in the Forest Group selection, also called the compact multirail.
Ideal for those who’re looking for an elegant system that can contain multiple curtains.
Ensures a smooth finish
Through a smart design, this rail can be used for suspension of both one and two curtains.
Maximum fabric weight 15 kg per channel per running meter of track (30 kg in total per running meter of track)
Hotels – offices – residences – boats – campers – planes or anywhere an efficient Multi channel track is required for curtains and drapes.
Aluminium extrusion, white powdercoated, lubricated. available in 6 meter length.
